This little snippet recognises handwritten digits.
It was made as a support for teaching neural networks, as it is more fun to play with than accuracy number on the test set!

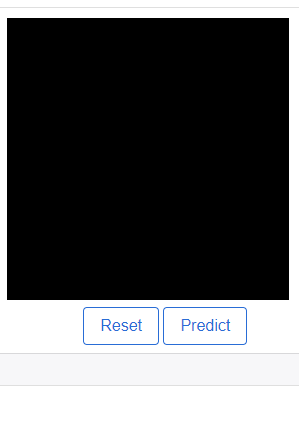

The input is done by the user in a web page using javascript. The model runs with tensorflow (1.5) and is served using flask.
2 models are provided:
- one very simple to demonstrate tensorflow's lower level API
- a more complex CNN with better results
The second model is used by default. It is loosely inspired by mobilenet and LeCun's models.
I added distortions to the input images, which reduced a little bit the accuracy but increased a lot the result with actual user input which is often more ... warped, rotated, zommed in or out .. than the original mnist. I added entropy to the loss, to try and make the network less confident. It seemed to have a positive impact on the learning.
Overall the accuracy reaches ~99.3%
-
Launch the model server:
python serve.py -
Put the web folder on your web server
-
Enjoy!
*note by default the url for the model is http://127.0.0.1:30500/api change it as needed (in web/index.html)
