Aircraft Engine Failure prediction Model

This problem requires to accurectly predict remaining useful life (RUL) of aircraft turbofan engines based on various sensor measurements (multivariate time series). The RUL is defined as the number of engine cycles before failure.

I tried to predict the RUL values for engine units in the FD004 dataset from Turbofan Engine Degradation Simulation Data Set using two different models (LSTM network and support vector machine). My code can be found in the turbofan.ipynb file.

Data Preparation and Feature Engineering

First, I computed the RUL value for each row in the dataset to get a dataframe in the following form:

unit	cycle	sensor_1	sensor_2	sensor_n	RUL
1	1	0.2	30	0.9	192
1	2	0.3	29	0.2	191

Each row can be used as a model training sample where the sensor_k columns are the features and the RUL is the model target. The rows are treated as independend observations and the measurement trends from the previous cycles are ignored.

As recommended in (1), the features are normalized to μ = 0, σ = 1 and PCA is applied.

This simplified approach is used to train the support vector machine model.

Samples as Time Series

For the LSTM model, I opted for more advanced feature engineering and chose to incorporate the trends from the previous cycles. In this case, each training sample consists of masurements at cycle i as well as i-5, i-10, i-20, i-30, i-40.

The model input is a 3D tensor with shape (n, 6, 24) where n is the number of training samples, 6 is the number of cycles (timesteps), and 24 is the number of principal components (features).

LSTM Regressor

After running random search to optimize the hyperparameters and some experimentation, I settled on the following architecture:

Model: "rlu_estimator"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
components (InputLayer)      [(None, 6, 24)]           0
_________________________________________________________________
lstm (LSTM)                  (None, 64)                22784
_________________________________________________________________
dropout_lstm (Dropout)       (None, 64)                0
_________________________________________________________________
hidden_0 (Dense)             (None, 64)                4160
_________________________________________________________________
dropout_0 (Dropout)          (None, 64)                0
_________________________________________________________________
hidden_1 (Dense)             (None, 64)                4160
_________________________________________________________________
dropout_1 (Dropout)          (None, 64)                0
_________________________________________________________________
hidden_2 (Dense)             (None, 64)                4160
_________________________________________________________________
dropout_2 (Dropout)          (None, 64)                0
_________________________________________________________________
rul_prediction (Dense)       (None, 1)                 65
=================================================================
Total params: 35,329
Trainable params: 35,329
Non-trainable params: 0

The model is using L1L2 regularization and dropout layers to mitigate overfitting.

I trained the model 25 epochs and used annealing scheduler to decrease the learning rate over time.

Support Vector Machine

Use of a Support vector machine (SVM) model is suggested in (2). The authors recommend to use non-linear radial basis (RBF) function.

Results

I chose three different metrics to assess the performance of the models. Mean square error (MSE), median absolute error (MAE) and the Score as defined in (3). I modified the Score formula (11) in (3) by dividing the overall value by the number of testing samples (the definition in the paper contains an error, a_1 and a_2 should be switched in order to penalize RUL overshooting more heavily).

metric	LSTM	SVM
MSE	4627	5894
MAE	35	45
Score	8.58e10	1.65e14

Conclusions

It is clear that the advanced features together with the LSTM outperform the SVM model. The high Score values are caused by few outliers with significant errors and the exponential nature of the formula (3).

References

• (1) Data driven prognostics using a Kalman filter ensemble of neural network models
• (2) PHM-Oriented Integrated Fusion Prognostics for Aircraft Engines Based on Sensor Data
• (3) Damage Propagation Modeling for Aircraft Engine Run-to-Failure Simulation

turbofan_failure's Issues

MSE Implementation wrong

Hi,

I was very surprised of the results you claimed in your Readme. A 3.54 MSE would be amazing in this field. Sadly, you made a mistake when implementing the MSE. You added a np,sqrt where it should not be.

You wrote:

def MSE(RUL_real, RUL_pred):
    d = RUL_pred - RUL_real
    return np.sqrt(np.sum(np.square(d))) / len(d)

However, it should be:

def MSE(RUL_real, RUL_pred):
    d = RUL_pred - RUL_real
    return np.sum(np.square(d)) / len(d)

Even with worse results, this is still interesting work

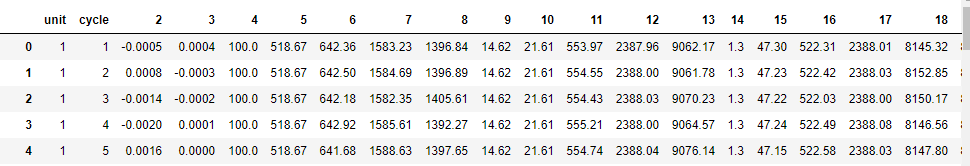

I want to ask what the label of this data is.

Hello, I want to ask what the label of this data is.

The meaning of these numbers
