This is a post which helps and guides you step-by-step to create an awesome, tweet-worthy Online Collaboration Text Editor
You can view a full tutorial here

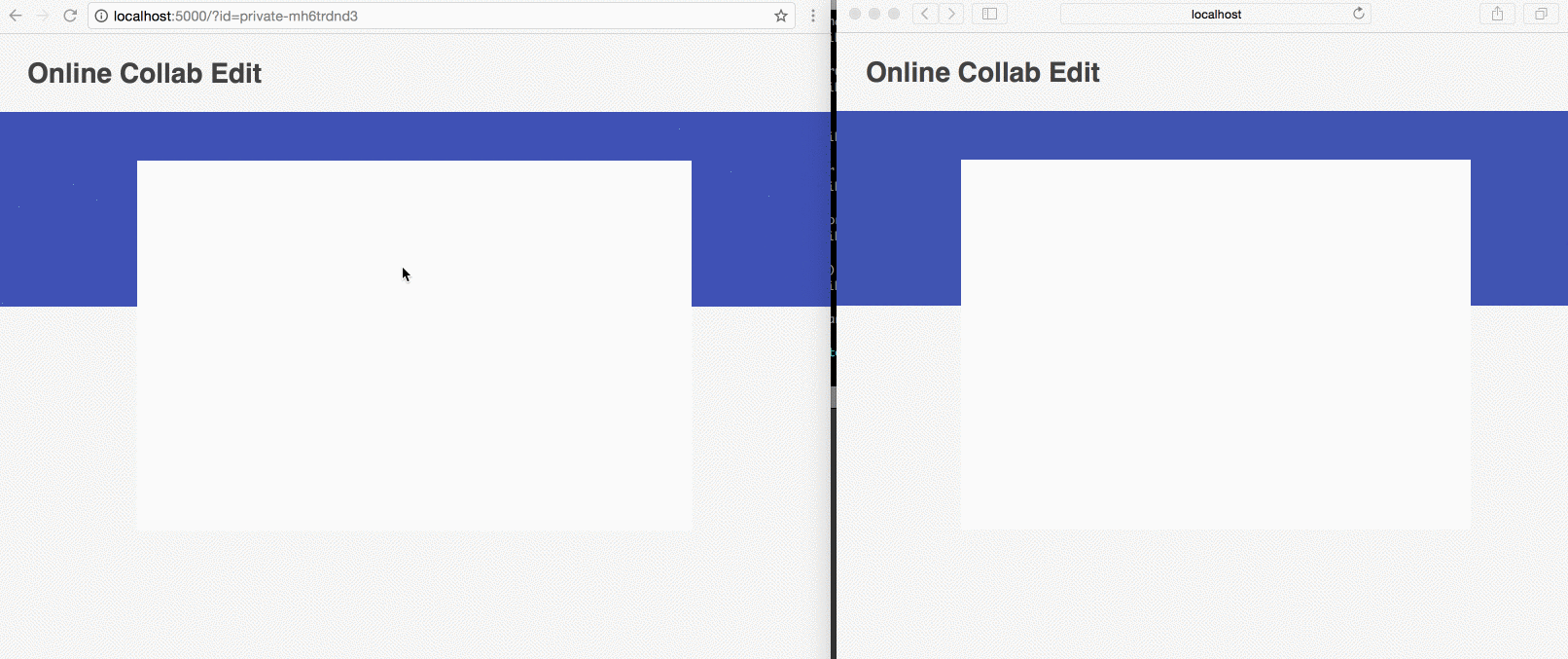

This is a glimpse of what we will be making at the end of this post.
Try Collaborative Text Editor. Open this link, and share with your friends and Whoaaaaa! Collaborate away!
- Create a super simple index.html and add a header and a div for our doc!
<!DOCTYPE>
<html>
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0, minimum-scale=1.0">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<title>Collaborative Text Editor</title>
<link href="https://fonts.googleapis.com/css?family=Roboto" rel="stylesheet">
<link href="/css/app.css" rel="stylesheet"></link>
</head>
<body>
<header class="header">
<h1 class="header__h1">Online Collab Edit</h1>
</header>
<div class="doc">
<div class="doc__background-ribbon"></div>
<div class="doc__text-editor hidden"></div>
</div>
</body>

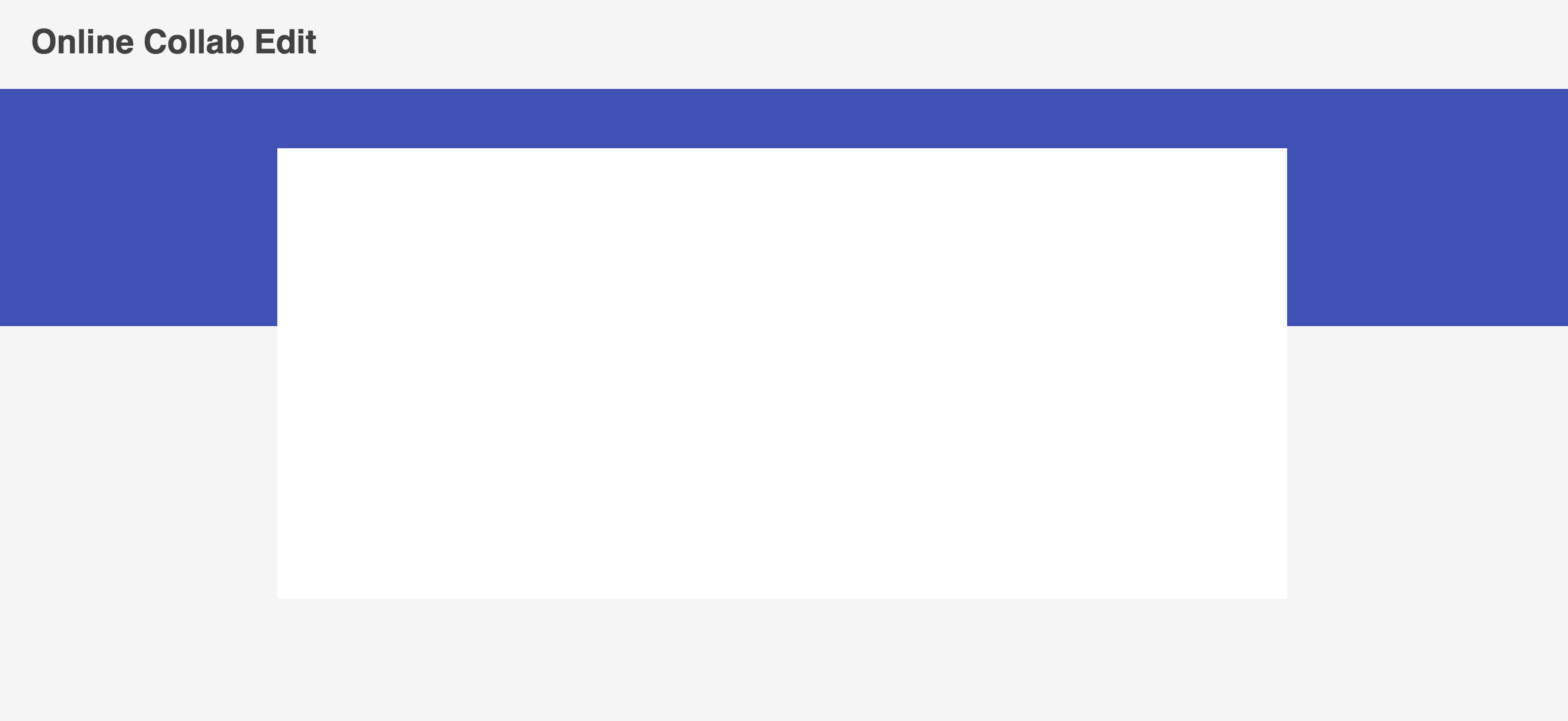

</html>- Create a CSS file, app.css and link it in the above HTML to start out with a pretty page!
- Create a JavaScript file in
jsdirectory, app.js, and add the following three lines to see the magic!
var doc = document.getElementById('doc');
doc.contentEditable = true;

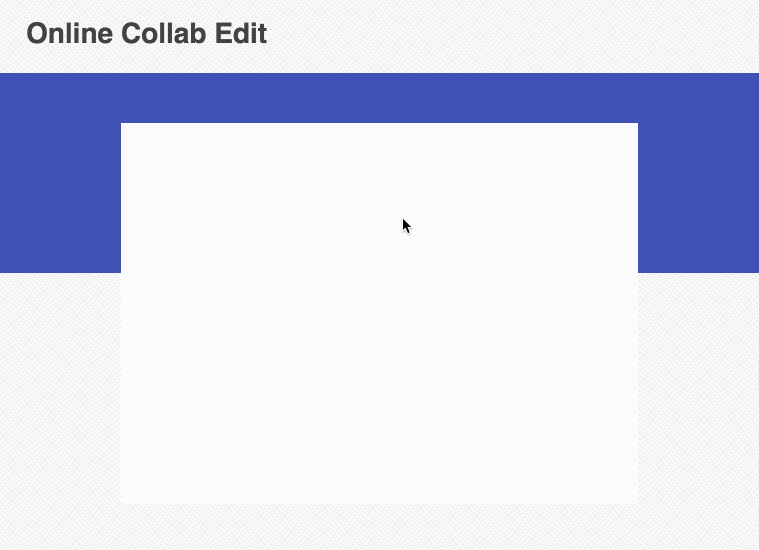

doc.focus();- And with that our doc is editable, go ahead and type. It even supports Ctrl+B, Ctrl+I to make text bold or italic
- Generate a unique identifier if the doc is new, which will be used to implement collaborative edit feature and append it to the URL as a query param, so the URL becomes shareable and unique.
var id = getUrlParameter('id');
if (!id) {
location.search = location.search
? '&id=' + getUniqueId() : 'id=' + getUniqueId();
return;
}getUrlParameter()andgetUniqueId()are two utility functions that we defined to help us get query params and generate unique keys
// a unique random key generator
function getUniqueId () {
return 'private-' + Math.random().toString(36).substr(2, 9);
}
// function to get a query param's value
function getUrlParameter(name) {
name = name.replace(/[\[]/, '\\[').replace(/[\]]/, '\\]');
var regex = new RegExp('[\\?&]' + name + '=([^&#]*)');
var results = regex.exec(location.search);
return results === null ? '' : decodeURIComponent(results[1].replace(/\+/g, ' '));
};- To make collaborative editor we'll use Pusher's real time capabilities. We'll trigger events whenever we make any change to the document and also at the same time listen for changes of other users for the same document.
- Signup for Pusher, or Login if you already have an account.
- Once, you login, create an app by giving an
app-nameand choosing aclusterin the Create App screen - Now that we've registered and created the app, add the
pusher's JavaScript libraryin yourindex.html
<script src="https://js.pusher.com/4.0/pusher.min.js"></script>- Connect to your app by calling the
Pusherconstructor with yourapp keyas shown in the below line
var pusher = new Pusher(<INSERT_PUSHER_APP_KEY_HERE>);- Next, we need to subscribe to the changes which happen to our document
- With Pusher these are called
channels. Every new document will be a newchannelfor us. Channel is represented by astring, in our case it'll be the unique Id we generated above. Read more about the awesome channels here.
// subscribe to the changes via Pusher
var channel = pusher.subscribe(id);
channel.bind('some-fun-event', function(data) {
// do something meaningful with the data here
});- Since, we want to listen all the events triggered for a document by all the users, we can do that directly without the need to route them to a server first. Enter Pusher's Client Events
- You need to enable
Client Eventsin yourSettingstab on Pusher's Dashboard Client Eventsshould start withclient-, and thus our event name client-text-edit. AlsoClient Eventshave a number of restrictions that are important to know about while creating your awesome app. Read about them here.- With these two lines, we've set our app listening to any change made on the doc by any user!
channel.bind('client-text-edit', function(html) {
doc.innerHTML = html;
});- Similarly we trigger client-text-edit event when we change content, so that other clients can see the changes almost immediately!
function triggerChange (e) {
channel.trigger('client-text-edit', e.target.innerHTML);
}
doc.addEventListener('input', triggerChange);- With Pusher's amazing library all of this complexity is abstracted out for us and we can truly focus on crafting superb product and top-class experience for our Users!
- All of this is wrapped in a
Promiseas you can only trigger changes to the channel when you've successfully subscribed to the channel itself! - To use private channels, you must be authenticated. Pusher makes writing an auth server very easy. I used their NodeJS template here.
- With that, we have our first version of Collaborative Text Editor ready! Whistles :P
- This
demo appdoesn't account for cases like concurrent edits at the same place in the document. For a production-like app you'd want to use Operational Transformation to solve the problem.
- To make this more awesome we can use Pusher's Presence channels which can even give information about the identity of the users who are editing your app!
- Add support for code highlighting for your choice of language and you've a collaborative code editor ready, which you can use to solve a fun puzzle or for a remote interview!
- clone the repository
git clone [email protected]:ankeetmaini/collaborative-text-editor.git
cd collaborative-text-editor
npm install
npm start- Code is hosted on GitHub collaborative-text-editor
