React Native binding for iOS ARKit.
Made with React Native Arkit:
- Homestory: An AI powered interior design assistant (App store)
Tutorial: How to make an ARKit app in 5 minutes using React Native
Sample Project: https://github.com/HippoAR/ReactNativeARKit
Note: ARKit is only supported by devices with A9 or later processors (iPhone 6s/7/SE/8/X, iPad 2017/Pro) on iOS 11. You also need Xcode 9 to build the project.
There is a Slack group that anyone can join for help / support / general questions.
$ yarn add react-native-arkit
make sure to use the latest version of yarn (>=1.x.x)
(npm does not work properly at the moment. See #103)
$ react-native link react-native-arkit
- In XCode, in the project navigator, right click
Libraries➜Add Files to [your project's name] - Go to
node_modules➜ addreact-native-arkit/ios/RCTARKit.xcodeprojandreact-native-arkit/ios/PocketSVG/PocketSVG.xcodeproj - In XCode, in the project navigator, select your project. Add
libRCTARKit.aand PocketSVG.frameworkto your project'sBuild Phases➜Link Binary With Libraries - In Tab
General➜Embedded Binaries➜+➜ AddPocketSVG.framework ios - Run your project (
Cmd+R)<
These steps are mandatory regardless of doing a manual or automatic installation:
- Give permissions for camera usage. In
Info.plistadd the following:
<key>NSCameraUsageDescription</key>
<string>Your message to user when the camera is accessed for the first time</string>
- ARKit only runs on arm64-ready devices so the default build architecture should be set to arm64: go to
Build settings➜Build Active Architecture Onlyand change the value toYes.
A simple sample React Native ARKit App
// index.ios.js
import React, { Component } from 'react';
import { AppRegistry, View } from 'react-native';
import { ARKit } from 'react-native-arkit';
export default class ReactNativeARKit extends Component {
render() {
return (
<View style={{ flex: 1 }}>
<ARKit
style={{ flex: 1 }}
debug
// enable plane detection (defaults to Horizontal)
planeDetection={ARKit.ARPlaneDetection.Horizontal}
// enable light estimation (defaults to true)
lightEstimationEnabled
// get the current lightEstimation (if enabled)
// it fires rapidly, so better poll it from outside with
// ARKit.getCurrentLightEstimation()
onLightEstimation={e => console.log(e.nativeEvent)}
// event listener for (horizontal) plane detection
onPlaneDetected={anchor => console.log(anchor)}
// event listener for plane update
onPlaneUpdated={anchor => console.log(anchor)}
// arkit sometimes removes detected planes
onPlaneRemoved={anchor => console.log(anchor)}
// event listeners for all anchors, see [Planes and Anchors](#planes-and-anchors)
onAnchorDetected={anchor => console.log(anchor)}
onAnchorUpdated={anchor => console.log(anchor)}
onAnchorRemoved={anchor => console.log(anchor)}
// you can detect images and will get an anchor for these images
detectionImages={[{ resourceGroupName: 'DetectionImages' }]}
onARKitError={console.log} // if arkit could not be initialized (e.g. missing permissions), you will get notified here
>
<ARKit.Box
position={{ x: 0, y: 0, z: 0 }}
shape={{ width: 0.1, height: 0.1, length: 0.1, chamfer: 0.01 }}
/>
<ARKit.Sphere
position={{ x: 0.2, y: 0, z: 0 }}
shape={{ radius: 0.05 }}
/>
<ARKit.Cylinder
position={{ x: 0.4, y: 0, z: 0 }}
shape={{ radius: 0.05, height: 0.1 }}
/>
<ARKit.Cone
position={{ x: 0, y: 0.2, z: 0 }}
shape={{ topR: 0, bottomR: 0.05, height: 0.1 }}
/>
<ARKit.Pyramid
position={{ x: 0.2, y: 0.15, z: 0 }}
shape={{ width: 0.1, height: 0.1, length: 0.1 }}
/>
<ARKit.Tube
position={{ x: 0.4, y: 0.2, z: 0 }}
shape={{ innerR: 0.03, outerR: 0.05, height: 0.1 }}
/>
<ARKit.Torus
position={{ x: 0, y: 0.4, z: 0 }}
shape={{ ringR: 0.06, pipeR: 0.02 }}
/>
<ARKit.Capsule
position={{ x: 0.2, y: 0.4, z: 0 }}
shape={{ capR: 0.02, height: 0.06 }}
/>
<ARKit.Plane
position={{ x: 0.4, y: 0.4, z: 0 }}
shape={{ width: 0.1, height: 0.1 }}
/>
<ARKit.Text
text="ARKit is Cool!"
position={{ x: 0.2, y: 0.6, z: 0 }}
font={{ size: 0.15, depth: 0.05 }}
/>
<ARKit.Light
position={{ x: 1, y: 3, z: 2 }}
type={ARKit.LightType.Omni}
color="white"
/>
<ARKit.Light
position={{ x: 0, y: 1, z: 0 }}
type={ARKit.LightType.Spot}
eulerAngles={{ x: -Math.PI / 2 }}
spotInnerAngle={45}
spotOuterAngle={45}
color="green"
/>
<ARKit.Model
position={{ x: -0.2, y: 0, z: 0, frame: 'local' }}
scale={0.01}
model={{
scale: 1, // this is deprecated, use the scale property that is available on all 3d objects
file: 'art.scnassets/ship.scn', // make sure you have the model file in the ios project
}}
/>
<ARKit.Shape
position={{ x: -1, y: 0, z: 0 }}
eulerAngles={{
x: Math.PI,
}}
scale={0.01}
shape={{
// specify shape by svg! See https://github.com/HippoAR/react-native-arkit/pull/89 for details
pathSvg: `
<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 100 100">
<path d="M50,30c9-22 42-24 48,0c5,40-40,40-48,65c-8-25-54-25-48-65c 6-24 39-22 48,0 z" fill="#F00" stroke="#000"/>
</svg>`,
pathFlatness: 0.1,
// it's also possible to specify a chamfer profile:
chamferRadius: 5,
chamferProfilePathSvg: `
<path d="M.6 94.4c.7-7 0-13 6-18.5 1.6-1.4 5.3 1 6-.8l9.6 2.3C25 70.8 20.2 63 21 56c0-1.3 2.3-1 3.5-.7 7.6 1.4 7 15.6 14.7 13.2 1-.2 1.7-1 2-2 2-5-11.3-28.8-3-30.3 2.3-.4 5.7 1.8 6.7 0l8.4 6.5c.3-.4-8-17.3-2.4-21.6 7-5.4 14 5.3 17.7 7.8 1 .8 3 2 3.8 1 6.3-10-6-8.5-3.2-19 2-8.2 18.2-2.3 20.3-3 2.4-.6 1.7-5.6 4.2-6.4"/>
`,
extrusion: 10,
}}
/>
</ARKit>
</View>
);
}
}
AppRegistry.registerComponent('ReactNativeARKit', () => ReactNativeARKit);
| Prop | Type | Note |
|---|---|---|
debug |
Boolean |
Debug mode will show the 3D axis and feature points detected. |
planeDetection |
ARKit.ARPlaneDetection.{ Horizontal | Vertical | HorizontalVertical | None } |
ARKit plane detection. Defaults to Horizontal. Vertical is available with IOS 11.3 |
lightEstimationEnabled |
Boolean |
ARKit light estimation (defaults to false). |
worldAlignment |
ARKit.ARWorldAlignment.{ Gravity | GravityAndHeading | Camera } |
ARWorldAlignmentGravity The coordinate system's y-axis is parallel to gravity, and its origin is the initial position of the device. ARWorldAlignmentGravityAndHeading The coordinate system's y-axis is parallel to gravity, its x- and z-axes are oriented to compass heading, and its origin is the initial position of the device. ARWorldAlignmentCamera The scene coordinate system is locked to match the orientation of the camera. Defaults to ARKit.ARWorldAlignment.Gravity. See |
origin |
{position, transition} |
Usually {0,0,0} is where you launched the app. If you want to have a different origin, you can set it here. E.g. if you set origin={{position: {0,-1, 0}, transition: {duration: 1}}} the new origin will be one meter below. If you have any objects already placed, they will get moved down using the given transition. All hit-test functions or similar will report coordinates relative to that new origin as position. You can get the original coordinates with positionAbsolute in these functions |
detectionImages |
Array<DetectionImage> |
An Array of DetectionImage (see below), only available on IOS 11.3 |
An DetectionImage is an image or image resource group that should be detected by ARKit.
See https://developer.apple.com/documentation/arkit/arreferenceimage?language=objc how to add these images.
You will then receive theses images in onAnchorDetected/onAnchorUpdated. See also Planes and Anchors for more details.
DetectionImage has these properties
| Prop | Type | Notes |
|---|---|---|
resourceGroupName |
String |
The name of the resource group |
We probably will add the option to load images from other sources as well (PRs encouraged).
| Event Name | Returns | Notes |
|---|---|---|
onARKitError |
ARKiterror |
will report whether an error occured while initializing ARKit. A common error is when the user has not allowed camera access. Another error is, if you use worldAlignment=GravityAndHeading and location service is turned off |
onLightEstimation |
{ ambientColorTemperature, ambientIntensity } |
Light estimation on every frame. Called rapidly, better use polling. See ARKit.getCurrentLightEstimation() |
onFeaturesDetected |
{ featurePoints} |
Detected Features on every frame (currently also not throttled). Usefull to display custom dots for detected features. You can also poll this information with ARKit.getCurrentDetectedFeaturePoints() |
onAnchorDetected |
Anchor |
When an anchor (plane or image) is first detected. |
onAnchorUpdated |
Anchor |
When an anchor is updated |
onAnchorRemoved |
Anchor |
When an anchor is removed |
onPlaneDetected |
Anchor |
When a plane anchor is first detected. |
onPlaneUpdated |
Anchor |
When a detected plane is updated |
onPlaneRemoved |
Anchor |
When a detected plane is removed |
See Planes and Anchors for Details about anchors
ARKit can detect different anchors in the real world:
planehorizontal and vertical planesimage, image-anchors See DetectionImage- face with iphone X or similar (not implemented yet)
You then will receive anchor objects in the onAnchorDetected, onAnchorUpdated, onAnchorRemoved callbacks on your <ARKit />-component.
You can use onPlaneDetected, onPlaneUpdated, onPlaneRemoved to only receive plane-anchors (may be deprecated later).
The Anchor object has the following properties:
| Property | Type | Description |
|---|---|---|
id |
String |
a unique id identifying the anchor |
type |
String |
The type of the anchor (plane, image) |
position |
{ x, y, z } |
the position of the anchor (relative to the origin) |
positionAbsolute |
{ x, y, z } |
the absolute position of the anchor |
eulerAngles |
{ x, y, z } |
the rotation of the plane |
If its a plane-anchor, it will have these additional properties:
| Property | Description |
|---|---|
alignment |
ARKit.ARPlaneAnchorAlignment.Horizontal or ARKit.ARPlaneAnchorAlignment.Vertical so you can check whether it was a horizontal or vertical plane |
extent |
see https://developer.apple.com/documentation/arkit/arplaneanchor?language=objc |
center |
see https://developer.apple.com/documentation/arkit/arplaneanchor?language=objc |
image-Anchor:
| Property | type | Description |
|---|---|---|
image |
{name} |
an object with the name of the image. |
Static Methods can directly be used on the ARKit-export:
import { ARKit } from 'react-native-arkit'
//...
const result = await ARKit.hitTestSceneObjects(point);
All methods return a promise with the result.
| Method Name | Arguments | Notes |
|---|---|---|
snapshot |
||
snapshotCamera |
Take a screenshot without 3d models (will save to Photo Library) | |
getCameraPosition |
Get the current position of the ARCamera |
|
getCamera |
Get all properties of the ARCamera |
|
getCurrentLightEstimation |
Get current light estimation { ambientColorTemperature, ambientIntensity} |
|
getCurrentDetectedFeaturePoints |
Get current detected feature points (in last current frame) (array) | |
focusScene |
Sets the scene's position/rotation to where it was when first rendered (but now relative to your device's current position/rotation) | |
hitTestPlanes |
point, type | check if a plane has ben hit by point ({x,y}) with detection type (any of ARKit.ARHitTestResultType). See https://developer.apple.com/documentation/arkit/arhittestresulttype?language=objc for further information |
hitTestSceneObjects |
point | check if a scene object has ben hit by point ({x,y}) |
isInitialized |
boolean | check whether arkit has been initialized (e.g. by mounting). See #152 for details |
isMounted |
boolean | check whether arkit has been mounted. See #152 for details |
This project allows you to work with 3d elements like with usual react-components. We provide some primitive shapes like cubes, spheres, etc. as well as a component to load model-files.
You can also nest components to create new Components. Child-elements will be relative to the parent:
const BigExclamationMark = ({ position, eulerAngles, color = '#ff0000' }) => (
<ARKit.Group opacity={0.5} position={position} eulerAngles={eulerAngles}>
<ARKit.Sphere
position={{ x: 0, y: 0, z: 0 }}
shape={{ radius: 0.06 }}
material={{ diffuse: color }}
/>
<ARKit.Cone
position={{ x: 0, y: 0.4, z: 0 }}
shape={{ topR: 0.1, bottomR: 0.05, height: 0.5 }}
material={{ diffuse: color }}
/>
</ARKit.Group>
)
// somewhere else
<BigExclamationMark
eulerAngles={{ x: 0.2 }}
position={{ x: 0.2, y: 0.3, z: -0.2 }}
color="#00ff00"
/>
Most 3d object have these common properties
| Prop | Type | Description |
|---|---|---|
position |
{ x, y, z } |
The object's position (y is up) |
scale |
Number | The scale of the object. Defaults to 1 |
eulerAngles |
{ x, y, z } |
The rotation in eulerAngles |
id |
String | a unique identifier. Only provide one, if you need to find the node later in hit-testing. |
shape |
depends on object | the shape of the object (will probably renamed to geometry in future versions) |
material |
{ diffuse, metalness, roughness, lightingModel, shaders } |
the material of the object |
transition |
{duration: 1} |
Some property changes can be animated like in css transitions. Currently you can specify the duration (in seconds). |
Advanced properties:
| Prop | Type | Description |
|---|---|---|
rotation |
TODO | see scenkit documentation |
orientation |
TODO | see scenkit documentation |
renderingOrder |
Number | Order in which object is rendered. Usefull to place elements "behind" others, although they are nearer. |
categoryBitMask |
Number / bitmask | control which lights affect this object |
castsShadow |
boolean |
whether this object casts shadows |
constraint |
ARKit.Constraint.{ BillboardAxisAll | BillboardAxisX | BillboardAxisY | BillboardAxisZ | None } |
Constrains the node to always point to the camera |
New experimental feature:
You can switch properties on mount or onmount by specifying propsOnMount and propsOnUnmount.
E.g. you can scale an object on unmount:
<ARKit.Sphere
position={{x:0,y:0,z:0}}
scale={1}
transition={{duration: 1}}
propsOnUnmount={{
scale: 0
}}
/>
Most objects take a material property with these sub-props:
| Prop | Type | Description |
|---|---|---|
diffuse |
{ ...mapProperties } (see below) |
diffuse |
specular |
{ ...mapProperties } (see below) |
specular |
displacement |
{ ...mapProperties } (see below) |
displacement |
normal |
{ ...mapProperties } (see below) |
normal |
metalness |
number | metalness of the object |
roughness |
number | roughness of the object |
doubleSided |
boolean | render both sides, default is true |
litPerPixel |
boolean | calculate lighting per-pixel or vertex litPerPixel |
lightingModel |
ARKit.LightingModel.* |
LightingModel |
blendMode |
ARKit.BlendMode.* |
BlendMode |
transparencyMode |
ARKit.TransparencyMode.* |
TransparencyMode |
fillMode |
ARKit.FillMode.* |
FillMode |
shaders |
Object with keys from ARKit.ShaderModifierEntryPoint.* and shader strings as values |
Shader modifiers |
colorBufferWriteMask |
ARKit.ColorMask.* |
color mask. Set to ARKit.ColorMask.None so that an object is transparent, but receives deferred shadows. |
Map Properties:
| Prop | Type | Description |
|---|---|---|
path |
string | Currently require is not supported, so this is an absolute link to a local resource placed for example in .xcassets |
color |
string | Color string, only used if path is not provided |
wrapS |
ARKit.WrapMode.{ Clamp | Repeat | Mirror } |
wrapS |
wrapT |
ARKit.WrapMode.{ Clamp | Repeat | Mirror } |
wrapT |
wrap |
ARKit.WrapMode.{ Clamp | Repeat | Mirror } |
Shorthand for setting both wrapS & wrapT |
translation |
{ x, y, z } |
Translate the UVs, equivalent to applying a translation matrix to SceneKit's transformContents |
rotation |
{ angle, x, y, z } |
Rotate the UVs, equivalent to applying a rotation matrix to SceneKit's transformContents |
scale |
{ x, y, z } |
Scale the UVs, equivalent to applying a scale matrix to SceneKit's transformContents |
This Object has no geometry, but is simply a wrapper for other components. It receives all common properties like position, eulerAngles, scale, opacity, etc. but no shape or material.
| Prop | Type |
|---|---|
shape |
{ width, height, length, chamfer } |
And any common object property (position, material, etc.)
| Prop | Type |
|---|---|
shape |
{ radius } |
| Prop | Type |
|---|---|
shape |
{ radius, height } |
| Prop | Type |
|---|---|
shape |
{ topR, bottomR, height } |
| Prop | Type |
|---|---|
shape |
{ width, height, length } |
| Prop | Type |
|---|---|
shape |
{ innerR, outerR, height } |
| Prop | Type |
|---|---|
shape |
{ ringR, pipeR } |
| Prop | Type |
|---|---|
shape |
{ capR, height } |
| Prop | Type |
|---|---|
shape |
{ width, height } |
Notice: planes are veritcally aligned. If you want a horizontal plane, rotate it around the x-axis.
Example:
This is a horizontal plane that only receives shadows, but is invisible otherwise:
<ARKit.Plane
eulerAngles={{ x: Math.PI / 2 }}
position={floorPlane.position}
renderingOrder={9999}
material={{
color: '#ffffff',
lightingModel: ARKit.LightingModel.Constant,
colorBufferWriteMask: ARKit.ColorMask.None,
}}
shape={{
width: 100,
height: 100,
}}
/>
| Prop | Type |
|---|---|
text |
String |
font |
{ name, size, depth, chamfer } |

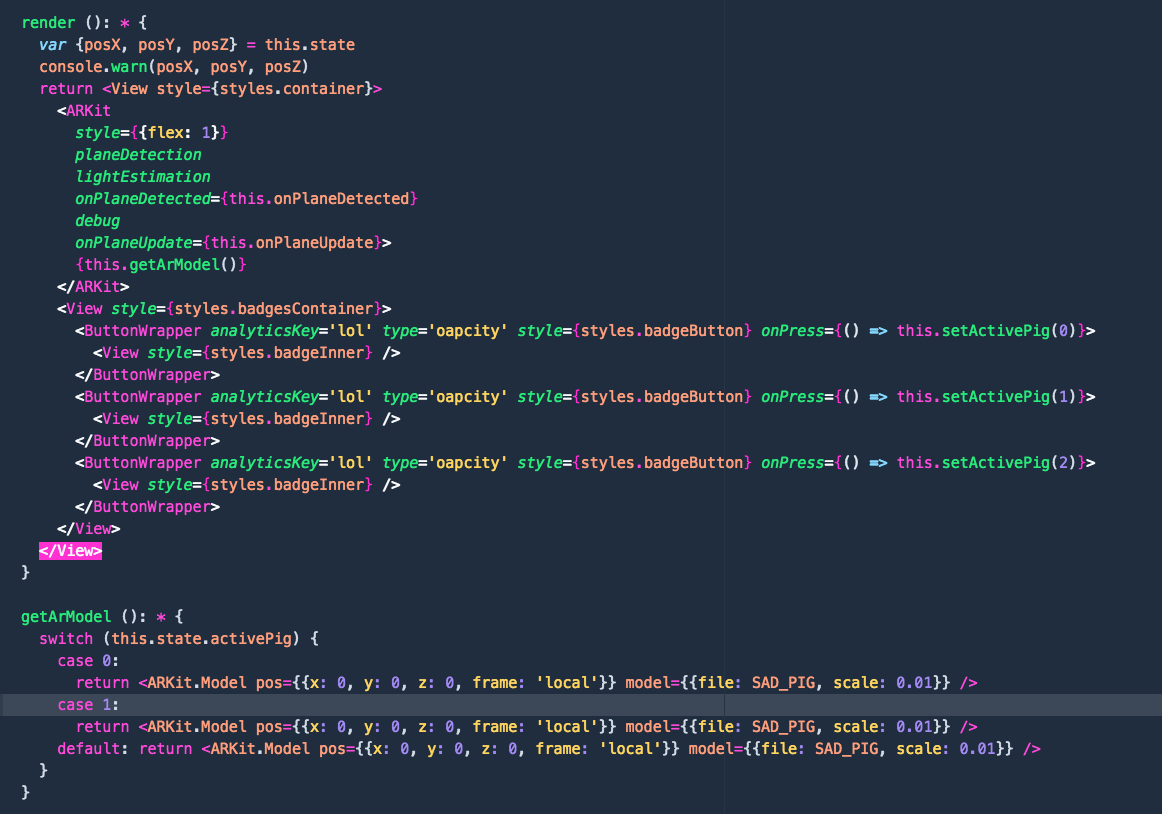

SceneKit only supports .scn and .dae formats.
| Prop | Type |
|---|---|
model |
{ file, node, scale, alpha } |
Objects currently don't take material property.
Creates a extruded shape by an svg path. See #89 for details
| Prop | Type |
|---|---|
shape |
{ pathSvg, extrusion, pathFlatness, chamferRadius, chamferProfilePathSvg, chamferProfilePathFlatness } |
Place lights on the scene!
You might set autoenablesDefaultLighting={false} on The <ARKit /> component to disable default lighting. You can use lightEstimationEnabled and ARKit.getCurrentLightEstimation() to find values for intensity and temperature. This produces much nicer results then autoenablesDefaultLighting.
| Prop | Type | Description |
|---|---|---|
position |
{ x, y, z } |
|
eulerAngles |
{ x, y, z } |
|
type |
any of ARKit.LightType |
see here for details |
color |
string |
the color of the light |
temperature |
Number |
The color temperature of the light |
intensity |
Number |
The light intensity |
lightCategoryBitMask |
Number/bitmask |
control which objects are lit by this light |
castsShadow |
boolean |
whether to cast shadows on object |
shadowMode |
`ARKit.ShadowMode.* | Define the shadowmode. Set to ARKit.ShadowMode.Deferred to cast shadows on invisible objects (like an invisible floor plane) |
Most properties described here are also supported: https://developer.apple.com/documentation/scenekit/scnlight
This feature is new. If you experience any problem, please report an issue!
this hoc allows you to create 3D components where the position is always relative to the same point on the screen/camera, but sticks to a plane or object.
Think about a 3D cursor that can be moved across your table or a 3D cursor on a wall.
You can use the hoc like this:
const Cursor3D = withProjectedPosition()(({positionProjected, projectionResult}) => {
if(!projectionResult) {
// nothing has been hit, don't render it
return null;
}
return (
<ARKit.Sphere
position={positionProjected}
transition={{duration: 0.1}}
shape={{
radius: 0.1
}}
/>
)
})
It's recommended that you specify a transition duration (0.1s works nice), as the position gets updated rapidly, but slightly throttled.
Now you can use your 3D cursor like this:
Given you have detected a plane with onPlaneDetected, you can make the cursor stick to that plane:
<Cursor3D projectPosition={{
x: windowWidth / 2,
y: windowHeight / 2,
plane: "my-planeId"
}}
/>
If you don't have the id, but want to place the cursor on a certain plane (e.g. the first or last one), pass a function for plane. This function will get all hit-results and you can return the one you need:
<Cursor3D projectPosition={{
x: windowWidth / 2,
y: windowHeight / 2,
plane: (results) => results.length > 0 ? results[0] : null
}}
/>
You can also add a property onProjectedPosition to your cursor which will be called with the hit result on every frame
It uses https://developer.apple.com/documentation/arkit/arframe/2875718-hittest with some default options. Please file an issue or send a PR if you need more control over the options here!
You can attach the cursor on a 3D object, e.g. a non-horizontal-plane or similar:
Given there is some 3D object on your scene with id="my-nodeId"
<Cursor3D projectPosition={{
x: windowWidth / 2,
y: windowHeight / 2,
node: "my-nodeId"
}}
/>
Like with planes, you can select the node with a function.
E.gl you have several "walls" with ids "wall_1", "wall_2", etc.
<Cursor3D projectPosition={{
x: windowWidth / 2,
y: windowHeight / 2,
node: results => results.find(r => r.id.startsWith('wall_')),
}}
/>
It uses https://developer.apple.com/documentation/scenekit/scnscenerenderer/1522929-hittest with some default options. Please file an issue or send a PR if you need more control over the options here!
- camera access (see section iOS Project configuration above). The user is asked for permission, as soon as you mount an
<ARKit />component or use any of its API. If user denies access, you will get an error inonARKitError - location service: only needed if you use
ARKit.ARWorldAlignment.GravityAndHeading.
Not yet, but there has been a proof-of-concept: #14. We are looking for contributors to help backporting this proof-of-conept to react-native-arkit.
If you find a bug or would like to request a new feature, just open an issue. Your contributions are always welcome! Submit a pull request and see CONTRIBUTING.md for guidelines.
React
Typescript
Django
Laravel
Facebook
Microsoft
Google
Alibaba
D3
Tencent
