I needed a cylindric bend but was unable to get it working as it was in this repository (it also had some imprecise side effects, was sensitive to different inputs, etc.). So I rewrote it quite significantly to meet my needs. Note, I've tested it with just one child. Note also, I'm not union()
ing the resulting slices as I think it's up to the user whether or not to union()
them.
It's really slow, but works well for me (use nsteps=5
first - it takes about 10 seconds to render - and for the final render e.g. nsteps=600
which took about 4 hours to render on my old machine for a decently complex and fine grained model). The code is as follows (licensed under CC0 public license). Feel free to incorporate it.
_steps = 10;
_z_shift = 3;
#cylindric_bend( [2,2,6 +_z_shift], _steps, 270 )
translate( [1,1,0 +_z_shift] )
cylinder( d=2, h=6 );
// arg: dimensions of a bounding box to bend (it starts at [0,0,0] and has positive x,y,z)
// arg: number of slices (quality versus performance)
// arg: resulting angle in degrees
module cylindric_bend( dimensions, nsteps, angle_deg ){
assert( nsteps >= 1 );
steps = nsteps -1; // first slice hack
step_angle = angle_deg / steps;
step_width = dimensions.y / steps;
// a parallel to x axis in z height (basically a radius)
radius = 0;
echo( "cylindric_bend() started..." );
step_shift = 0.5;
for( step = [0:1:steps] ){
hull(){
if( step == 0 ){
intersection() {
translate( [0,-step_width/2,0] )
children();
// first slice
translate( [0,-step_width/2,0] )
cube( [dimensions.x, step_width, dimensions.z] );
}
}
for( substep = [step:1:min( step+1, steps )] ){
translate( [0,
radius * sin( substep * step_angle ),
radius * ( 1 - cos(substep * step_angle) )] )
rotate( step_angle * substep, [-1, 0, 0] )
translate( [0, -(substep-step_shift) * step_width, 0] )
intersection() {
children();
translate( [0, (substep-2*step_shift) * step_width, 0] )
cube( [dimensions.x, step_width, dimensions.z] );
}
}
}
}
echo( "cylindric_bend() finished" );
}
Thank you for the neat library.
I'm working through an example to give a slight bend to a more complex shape for a machine handle. I'm working to grasp better how the arguments work. Hopefully then my better understanding can be turned into a PR for a readme improvement. Is what I have so far correct?
height = 120;
baseWidth = 40;
cylindric_bend([baseWidth, height, baseWidth],200, nsteps=20)
translate([baseWidth/2, baseWidth/2, baseWidth/2]) rotate(90, [1,0,0])
cylinder(h= height, r=baseWidth/2, center=true);
Per my understanding the first argument for dimensions draws a box around the shape that I wanted to bend. Anything not in that box will be cut off. The object will be bent in the y plane so that's why I had to do the rotate to lie the cylinder on the side in the y plane since I wanted it to be bent lengthwise.
Question # 1 I'm not sure if there is an easy mathematical relationship for the radius that I can calculate as in a want a so many degrees bend or a bend that moves the part so many mms. Currently I just picked a number that looked good.

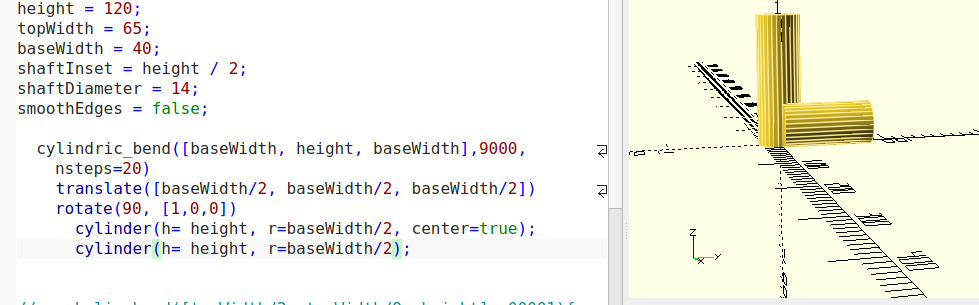

Question # 2 It seems that the object shrinks in the y plane a fairly large amount. What math could I utilize to help account for the shrinkage in the object? See image example for where I have basically no bend, but it still has a shrinkage applied compared the the object without the library ran on it.
What license is this source code published under?
Hi
I just came across this with OpenSCAD version 2023.06.05 (git c8c246c0c) on a mac.
bend_example_failed.zip
Any idea where to start looking?
I cloned your cylindrical bend to do so like this:
module cylindric_x_bend(dimensions, radius, nsteps = $fn)
{ step_angle = nsteps == 0 ? $fa : atan(dimensions.y/(radius * nsteps));
steps = ceil(nsteps == 0 ? dimensions.y/ (tan(step_angle) * radius) : nsteps);
step_width = dimensions.y / steps;
{ intersection()
{ children();
cube([dimensions.x, step_width/2, dimensions.z]);
}
for (step = [1:steps])
{ translate([0, radius * sin(step * step_angle), radius * (1 - cos(step * step_angle))])
rotate(step_angle * step, [1, 0, 0])
translate([0, -step * step_width, 0])
intersection()
{ children();
translate([0, (step - 0.5) * step_width, 0])
cube([dimensions.x, step_width, dimensions.z]);
}
}
}
}
module cylindric_y_bend(dimensions, radius, nsteps = $fn)
{ step_angle = nsteps == 0 ? $fa : atan(dimensions.x/(radius * nsteps));
steps = ceil(nsteps == 0 ? dimensions.x/ (tan(step_angle) * radius) : nsteps);
step_width = dimensions.x / steps;
{ intersection()
{ children();
cube([step_width/2, dimensions.y, dimensions.z]);
}
for (step = [1:steps])
{ translate([radius * sin(step * step_angle), 0, radius * (1 - cos(step * step_angle))])
rotate(step_angle * step, [0,-1, 0])
translate([-step * step_width, 0, 0])
intersection()
{ children();
translate([(step - 0.5) * step_width, 0, 0])
cube([step_width, dimensions.y, dimensions.z]);
}
}
}
}
I'm sure there is a neater way with just a single module and an extra optional parameter ... I'll leave that to some volunteer ;)
